Monofase M

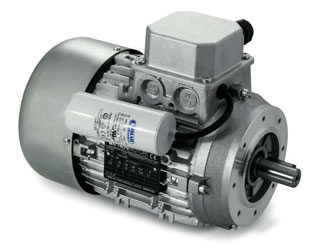

Motori asincroni monofase

Serie M 2/4/6 poli

I motori asincroni monofase sono indicati in ambienti "domestici" oppure dove la corrente è solo Monofase.

Sono disponibili secondo gli standard internazionali IEC dalla grandezza 50 alla grandezza 100. Nelle versioni con flangia B5, B14 e piedi B3.
Polarità Singole 2/4/6 Poli e doppia 2/4 Poli; potenze disponibili da Kw0,06 a Kw2,2.

SCHEDA TECNICA

2 POLI 3000 rpm - V230/50 Hz
TIPO	POTENZA		rpm	In 230 V A	Rend%	Cosφ p.f.	Ia In	Ca Cn	Cn Nm	Capacità	J	Peso
TIPO	kw	hp	rpm	In 230 V A	Rend%	Cosφ p.f.	Ia In	Ca Cn	Cn Nm	µF	kgm²	kg
M50B	0.08	0.10	2810	0.9	45.0	0.99	1.8	0.6	0.3	12.5	0.00010	2.1
M56A	0.08	0.10	2880	1.1	44.0	0.80	2.8	0.8	0.3	16.0	0.00012	2.7
M56B	0.12	0.16	2810	1.2	53.4	0.90	2.5	0.5	0.4	16.0	0.00015	3.3
M63B	0.18	0.25	2900	1.9	50.0	0.96	3.2	0.7	0.6	10.0	0.00030	4.2
M63C	0.25	0.35	2850	2.2	58.0	0.97	2.9	0.5	0.9	10.0	0.00035	4.4
M71B	0.37	0.50	2810	4.3	52.5	0.80	2.4	0.9	1.3	16.0	0.00046	6.0
M71C	0.55	0.75	2700	4.9	59.0	0.90	2.2	0.8	2.0	20.0	0.00057	6.3
M80B	0.75	1.00	2800	5.1	70.0	0.97	3.2	0.7	2.6	25.0	0.00097	10.7
M80C	1.10	1.50	2830	9.1	70.0	0.80	2.9	0.6	3.8	30.0	0.00120	11.3
M80D	1.50	2.00	2700	10.7	71.0	0.90	2.7	0.6	5.3	35.0	0.00130	12.0
M90S	1.50	2.00	2770	10.8	69.0	0.93	2.8	0.7	5.2	40.0	0.00150	13.2
M90L	1.80	2.50	2850	12.0	73.6	0.96	3.2	0.5	6.2	50.0	0.00230	13.7
M90LB	2.20	3.00	2790	14.5	73.0	0.95	3.0	0.6	7.6	50.0	0.00280	16.0
M100B	2.20	3.00	2890	14.4	72.7	0.98	3.3	0.5	7.4	60.0	0.00530	22.2
M100BL	3.00	4.00	2830	18.5	75.5	0.98	2.7	0.4	10.2	60.0	0.00530	24.0

4 POLI 3000 rpm - V230/50 Hz
TIPO	POTENZA		rpm	In 230 V A	Rend%	Cosφ p.f.	Ia In	Ca Cn	Cn Nm	Capacità	J	Peso
TIPO	kw	hp	rpm	In 230 V A	Rend%	Cosφ p.f.	Ia In	Ca Cn	Cn Nm	µF	kgm²	kg
M50B	0.06	0.08	1300	0.7	45	0.90	1.3	0.6	0.4	10.0	0.00010	2.5
M56B	0.09	0.12	1350	0.9	49	0.98	1.7	0.6	0.7	6.3	0.00015	3.3
M56C	0.11	0.15	1320	1.0	49	0.99	1.5	0.6	0.8	8.0	0.00020	3.4
M63B	0.12	0.16	1380	1.3	49	0.95	1.9	0.6	0.9	8.0	0.00040	4.3
M63C	0.18	0.25	1300	1.6	53	0.99	1.6	0.5	1.4	10.0	0.00040	4.8
M63D	0.22	0.30	1330	1.9	55	0.99	1.6	0.6	1.6	12.5	0.00050	5.2
M71B	0.25	0.35	1350	2.2	57	0.93	2.3	0.9	1.8	12.5	0.00080	6.8
M71C	0.37	0.50	1320	3.2	62	0.96	1.9	0.7	2.7	12.5	0.00090	7.8
M80A	0.55	0.75	1350	4.4	60	0.96	2.0	0.7	4.0	20.0	0.00140	10.0
M80B	0.75	1.00	1370	5.6	62.4	0.96	2.7	0.7	5.3	25.0	0.00170	11.4
M80C	0.88	1.20	1360	6.5	63	0.97	2.5	0.7	6.2	30.0	0.00230	11.0
M90S	1.10	1.50	1390	8.7	68.3	0.86	3.0	0.6	7.7	30.0	0.00330	13.8
M90L	1.50	2.00	1380	10.7	70.9	0.90	3.1	0.6	10.6	40.0	0.00400	14.5
M90LB	1.80	2.50	1350	12.0	71.5	0.92	2.8	0.6	12.6	45.0	0.00500	15.8
M100BL	2.20	3.00	1410	15.2	75.4	0.90	3.1	0.4	15.2	50.0	0.00850	23.0

6 POLI 3000 rpm - V230/50 Hz
TIPO	POTENZA		rpm	In 230 V A	Rend%	Cosφ p.f.	Ia In	Ca Cn	Cn Nm	Capacità	J	Peso
TIPO	kw	hp	rpm	In 230 V A	Rend%	Cosφ p.f.	Ia In	Ca Cn	Cn Nm	µF	kgm²	kg
M56B	0.03	0.05	910	0.8	28	0.80	1.3	0.8	0.37	8	0.00020	3.3
M63B	0.09	0.12	910	1.1	39	0.99	1.5	0.9	1.00	10	0.00025	4.3
M63C	0.12	0.16	900	1.4	43	0.99	1.3	1.0	1.30	10	0.00040	4.6
M71B	0.18	0.25	900	2.1	45	0.90	1.9	0.9	2.00	14	0.00080	6.7
M71C	0.25	0.35	860	2.4	50.5	0.97	1.7	0.8	2.80	16	0.00010	7.6
M80B	0.37	0.50	900	3.2	57.5	0.95	2.1	0.7	4.00	14	0.00250	9.2
M80C	0.45	0.60	850	3.8	55.4	0.96	1.7	0.6	5.20	16	0.00260	11.0
M90L	0.55	0.75	920	5.0	59.8	0.84	2.4	0.9	5.70	25	0.00450	14.0
M90LB	0.75	1.00	890	5.9	62.8	0.92	2.2	0.7	8.10	30	0.00500	16.0
M100B	1.10	1.50	930	8.3	68.6	0.91	2.5	0.5	11.60	40	0.00900	22.0
M100BL	1.50	2.00	890	10.7	67.1	0.96	2.0	0.5	16.30	50	0.00950	24.0
